Description

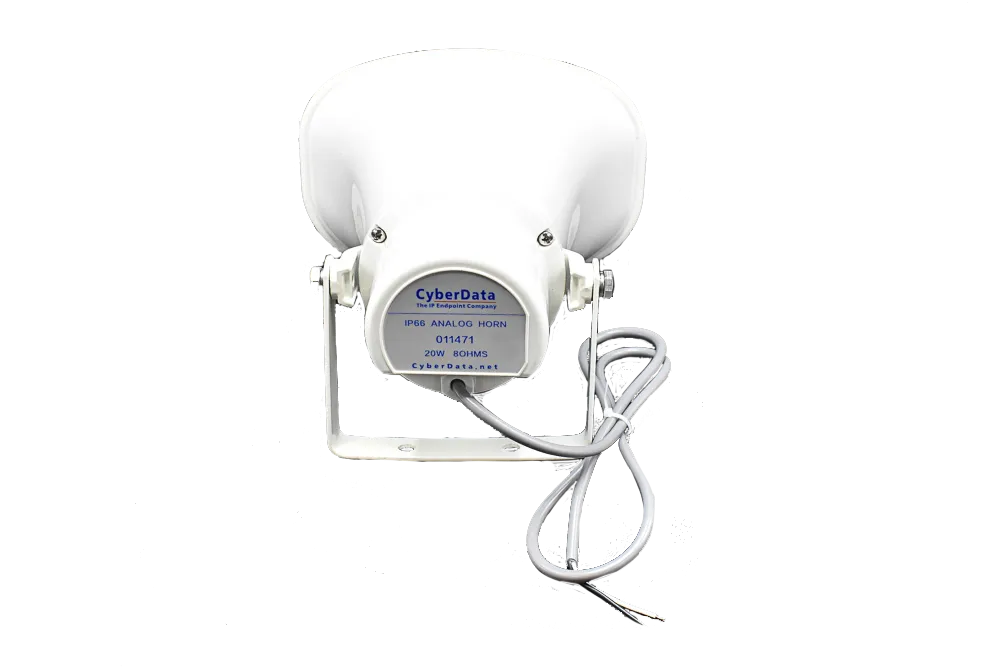

The CyberData IP66 Analog Horn is a heavy duty horn rated for outdoor use, while also being appropriate for warehouses, manufacturing plants, garages and any environment needing loud paging.
The IP66 rating means that is built for harsh outdoor environments including high moisture, dust, oil, and high pressure water jets.

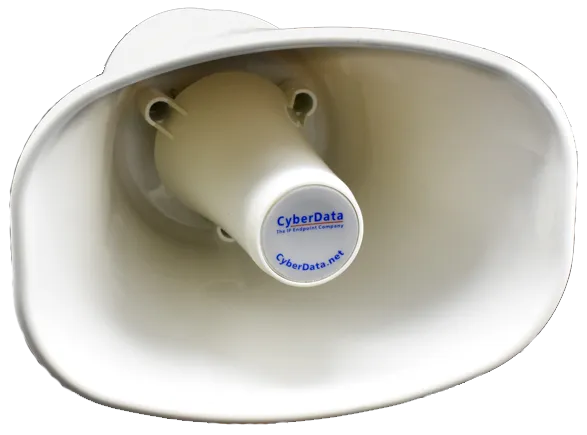

The device is an analog re-entrant horn with a powerful and efficient compression driver designed for good speech intelligibility and a large area of coverage utilizing the supplied AT PoE power.
The IP66 Analog Horn is used with the following CyberData Loudspeaker and Paging Amplifiers:
Features
- Weather and corrosion resistant design
- IP66 rating
- 20 watts continuous duty
- Designed for good speech intelligibility
- Adjustable mounting base
- 3.28 foot (1 meter) connected cable
Specs
| Input Impedance | 8 ohms nominal |
| Power Handling | 20 watts continuous duty |
| Input Power | 20W |
| Audio Output |
802.3at: 117.9 ( /- 0.2) dBC @ 1M and 1 kHz* |
| Frequency Response | 400 - 8000K Hz (-20 dB) |
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| IP Rating | IP66 |
| Dimensions** **Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you. |
Length: 8.86 in. [225 mm] Width: 9.33 in. [237 mm] Height: 6.38 in. [162 mm] (without stand) 7.09 in. [180 mm] (including stand) |
| Weight | 2.6 lbs. [1.18 kg] |
| Boxed Weight | 3.0 lbs. [1.36 kg] |
| Warranty | 2 Years Limited |
| Part Number | 011471 |
Installation
Typical Installation
Dimensions
Low Power Mode One Speaker
High Power Mode One Speaker
High Power Mode Two Speakers
Intelligibility Outdoor Field Test
Replacing the Speaker Wire
IP66 Weatherproofing
Suggested Outdoor Installation for Security
